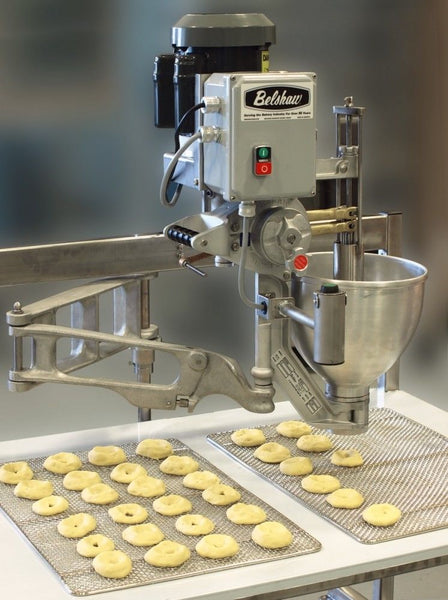

Belshaw now offers a version of its Type F depositor for yeast-raised donuts.
With the Type F-YRD, rolling and cutting dough are unnecessary.
The depositor fills a 17” x 25” screen in under 30 seconds, and produces
great tasting, well-rounded ring donuts.
• Any standard yeast-raised donut mix can be used.
• Donuts are deposited directly onto a fryer screen.
• Donuts are proofed like any other raised donut
• Donuts are fried normally.
• Type F-YRD employs a special plunger to deposit dough, usable for yeast-raised ring donuts only
• The adjustment dial at the side of the Type F-YRD allows a range of batter weights for each deposit.
• The Type F-YRD utilizes a motor and trigger handle to deposit at a rate of 57 per minute when the trigger is held down.
• The Type F-YRD is compatible with all open kettle fryers. It can also be used inconjunction with Donut Robot® systems
• Belshaw depositors, the industry standard for many years, are legendary for their precision and smoothness of operation - even after many years of use. Each depositor is engineered of durable gears, cams and trip arms to produce nearidentical volume and shape with every deposit.
Standard features
• Aluminum alloy frame and arm assembly• Hardened steel cams• Bronze trip arms and bushings
• Batter weight adjustment dial• Aluminum hopper (Capacity 15 lbs/6.8 kg)
• Heavy duty moto
r• Totally enclosed
• Fan cooled
• Includes thermally protected circuit breaker
• Hand trigger control up to 57 cycles/minuteAccessories
• Depositing table with mount for Type F-YRD (#FVMRF-1000)
• Type B/F Column Mount (#0405)• Wall Mount (#0406)
• Bracket Arm Height Adjuster (#0400)
• Plunger and cylinderPlungers and cylinders
• The plunger used by the Type F-YRD is suitable for ring donuts only, up toapproximately 4 inches diameter.Electrical options
• 120 Volts, 60 Hertz, 1-phase, 950W, 7.9 Amps
• 240 Volts, 50/60 Hertz, 1-phase, 960W, 4 Amp
